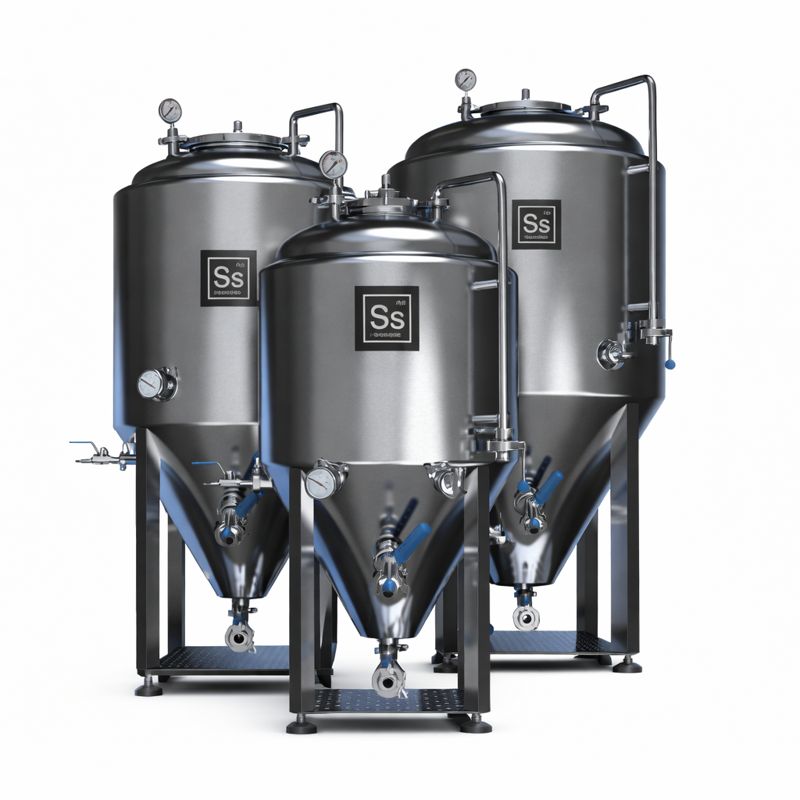

Jacketed Unitank by SS Brewtech | Fermentation & Conditioning Tank
The Jacketed Unitank is designed and built alongside our line of larger Pro Unitanks, and includes all the features you’d expect on a professional level fermenter.
Image Gallery
Description
Features
- Pro Construction: 3 mm inner wall, 2 mm dimpled glycol jacket, 1.5 mm outer wall
- Cone and body glycol jackets
- Proprietary TC lid cap with TC gasket retention system
- Lid cap includes combination 3" dry hop port and PRV
- Blow off tube and sanitary pressure gauge
- Zwickle sampling valve and analog thermometer
- 1.5" TC rotatable racking arm with DIN nut, 1.5" lower dump port (2in on 3.5 bbl tank)
- Discrete cylinder and cone jackets allow for half batching
- 1/2" NPT glycol inlet and outlet ports with internal jacket tie
- 316 SS carbstone with valve
- Cone mounted sleeved RTD port with probe included
- 4 MM lower stiffener plate with adjustable feet
Features
- Pro Construction: 3 mm inner wall, 2 mm dimpled glycol jacket, 1.5 mm outer wall
- Cone and body glycol jackets
- Proprietary TC lid cap with TC gasket retention system
- Lid cap includes combination 3" dry hop port and PRV
- Blow off tube and sanitary pressure gauge
- Zwickle sampling valve and analog thermometer
- 1.5" TC rotatable racking arm with DIN nut, 1.5" lower dump port (2in on 3.5 bbl tank)
- Discrete cylinder and cone jackets allow for half batching
- 1/2" NPT glycol inlet and outlet ports with internal jacket tie
- 316 SS carbstone with valve
- Cone mounted sleeved RTD port with probe included
- 4 MM lower stiffener plate with adjustable feet
